    Custom Long Span Heavy Duty Steel Racks Hand Loading 2000-4000mm Height

    Ask Lasest Price
    Brand Name : JIEBAO
    Model Number : JB-5
    Price : Negotiation
    Payment Terms : TT, LC, Western Union, MoneyGram
    Supply Ability : 5000sets per months
    Delivery Time : 10-15 work days after received deposit
    • Product Details
    • Company Profile

    Custom Long Span Heavy Duty Steel Racks Hand Loading 2000-4000mm Height

    Custom Long Span Heavy Duty Steel Racks Hand Loading Storage For Warehouse


    Product Description:

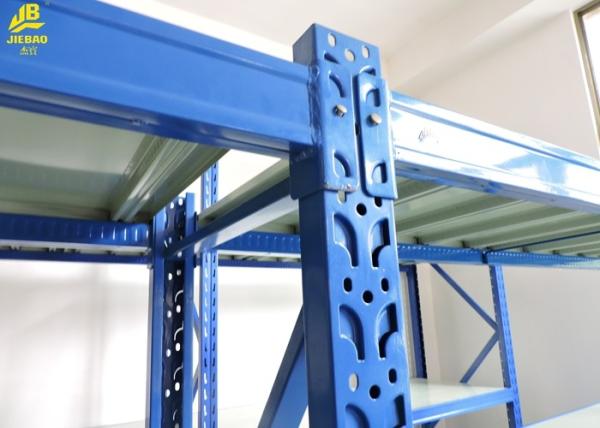

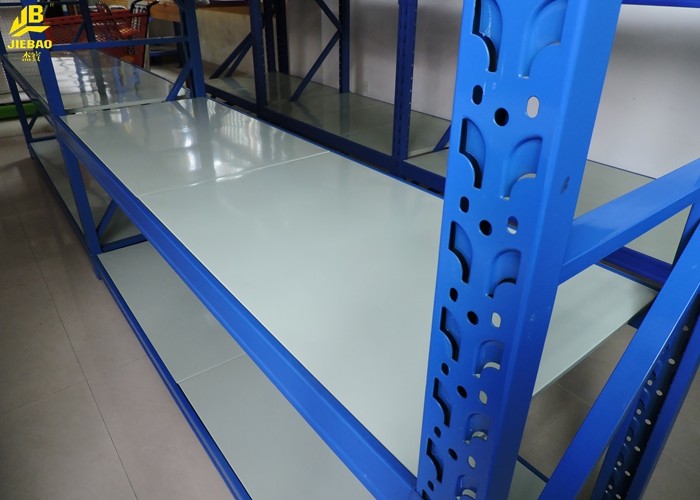

    JB-5 heavy duty steel racks, load weight 500-1000 kg each layer, simple assembly, steel layer board spacing can be adjusted up and down.


    A comprehensive range of frames and beams accommodates a wide range of loading requirements and is complimented by a choice of shelving materials which can be specified to meet specific needs.


    MaterialCold Rolled Steel, Q235
    Load Capacity1000kg/layer
    ColorBlue Color
    Length Size1200mm and 1500mm (1.2mm); 1800mm (1.5mm)
    Width Size450/600/800/1000mm
    Height Size2000/2200/2500/3000/3500/4000mm
    Columns75*38*1.5mm
    Beam70*63*1.2mm, over 600mm width, it have 1.5mm thickness
    Layer0.6mm

    Features:


    Promote the use rate and effectiveness of the storage well. The layer can equipped with iron board and wood board, pallet.


    It is use for awkward or bulky loads. Ideal for order picking or bulk storage. Long Span can be designed for single, multi tier or high rise applications.


    Due to the layer board width direction to laid out, width holding bar is smaller than length holding bars, so it improved a lot than the same length/width of the shelf bearing capacity.


    Our Company:


    Foshan Jiabao Shelf Manufacturing Co.,Ltd, which was established in 1988 is with large scale, strong ability, comprehensive administrative system, advanced facilities and technique.


    We are specialized in designing, manufacturing and selling racks as we have several teams of professional technicians, sales representatives and administrators.


    We are strict with staffs, production and quantity control for the whole process, from choosing material to delivering goods. We adopt good powder and advanced automatic production line for finish.


    At present our main products include light-duty storage rack, supermarket shelf, grocery rack, shopping trolley, promotion cart, cashier counter and a series of supermarket facilities.


    We are outstanding, as we are professional.
