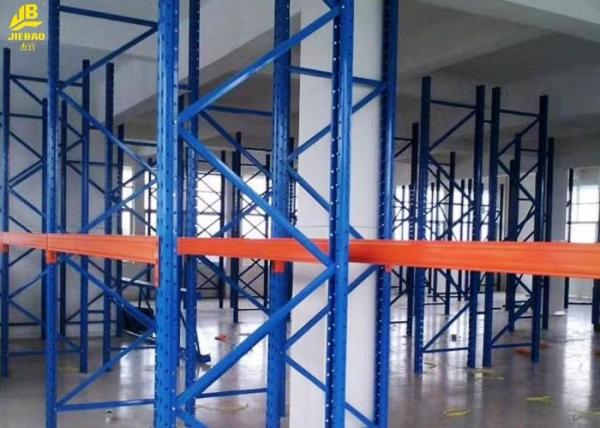

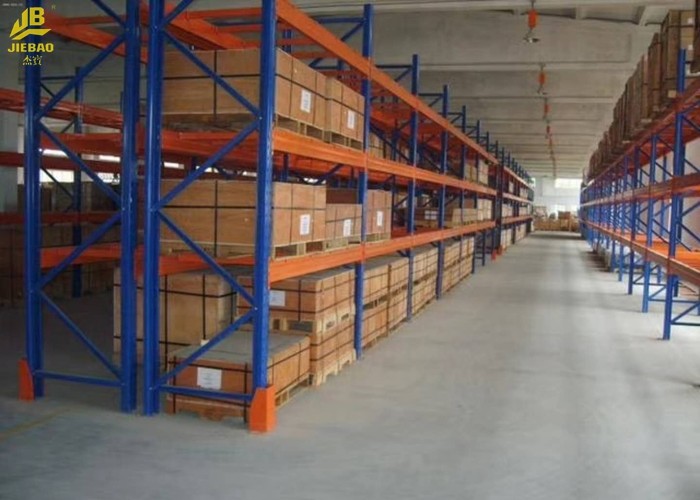

Heavy Duty Steel Plate Rack For Plastic Pallet Storage 4000KG Load Capacity

Products Description:

JB-10 rack, section view of beam series are 1.5mm thickness; section view of upright series are 2.2mm thickness.

It can load 1000-4000kg/layer, stronger than the P-type beam, square beam. Adopt the structure that the beam hitching on the frame, Optimizing secion design, coordinate with plastic pallet.

Feature:

1) Designed for storing few varieties and large quantites of similar goods with very high space utilization.

2) Goods are stored and removed from the same side, or done from the opposite side in accordance with the first-in first out principle.

3) Especially suitable for standard goods units.

4) Insertion combination between crossbeams and vertical columns.

5) Parts: upright poles, layer plates, crossbeam, bracing, safety pins, wire footing plates, beam supporting.

6) Materials: high quality steel

7) Max. load capacity: as required.

Basis Requirement of Pallet Racking And Warehouse Design:

1) Weight of cargo(including trays or material boxes)

2) Tray and cargo dimensions(WxDxH)

3) Lifting height of forklift and net height that can be used in warehouse.

4) Forklift model or parameters selected

5) Fork access direction for cargo area

6) Plane dimensions of storage area

7) Direction and requirements for cargo moving in and out of warehouse.

Foshan Jiabao Shelf Manufacturing Co., Ltd, which was established in 1988 is with large scale, strong ability, comprehensive administrative system, advanced facilities and technique.

We are specialized in designing, manufacturing and selling racks as we have several teams of professional technicians, sales representatives and administrators. We are strict with staffs, production and quality control for the whole process, from choosing material to delivering goods.

We adopt good powder and advanced automatic production line for finish. Because of our good quality and reputation, so far we earn trust and belief of many customers for a long term. Our company aims to develop step by step under leading concept “Quality for surviving, sincerity for developing”.

With about 20 years’ development, our products are more and more diversified. At present our main products include light-duty storage rack, supermarket shelf, grocery rack, CD shelf, book shelf, heavy-duty storage rack, lofting racks, corridor racks, storage cage, shopping trolley, promotion cart, cash counter and a series of supermarket facilities. Our products are popular both at home and aboard, and enjoying good fame among coteries.

We are outstanding, as we are professional. To shake hands with Jiabao is to be friends forever.
